Description:

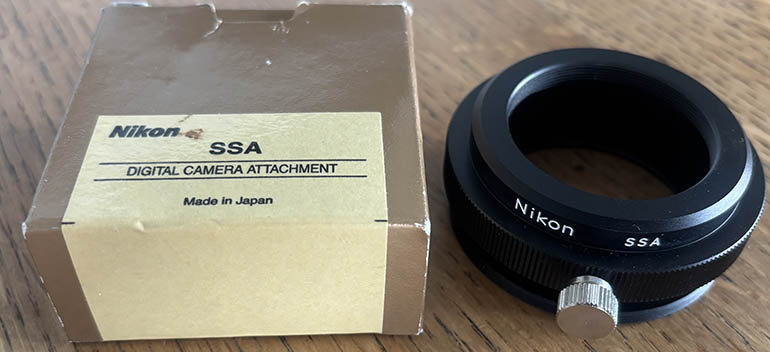

Second hand Nikon SSA Digital Camera Attachment
Lens adaptor for sale
Used The Nikon SSA Adaptor 6921 is an eyepiece projection system designed for attaching Nikon Fieldscope spotting scopes to Nikon SLR and DSLR cameras. When combined with a Nikon T-ring (specific to the camera mount), the adaptor enables the use of the Fieldscope as an ultra-telephoto lens. Can also be used with the Nikon F/S-CP9xx to attach the Coolpix 950 and Coolpix 990 digital camera and Coolpix 4500 or any other brand digital cameras with a 28mm filter thread.
Specifications
Type: Eyepiece projection adaptor
Construction: All-metal body for mechanical stability and optical alignment
Mounting System:
Scope Side: Accepts Nikon Wide DS eyepieces (24x/30x/40x/50x series)
Camera Side: Attaches to Nikon T-ring (sold separately)
Nikon F/S-CP9xx ring to attach Coolpix (xx series cameras.
Compatibility: Nikon Fieldscope III, EDIII, ED82, and equivalent models with compatible eyepieces
Function: Projects the image formed by the eyepiece directly onto the camera's image sensor or film plane
Focal Length Conversion: Effective focal length varies depending on Fieldscope model and eyepiece; approximate range 800-2000 mm (35 mm equivalent)
Applications: High-magnification still photography through Fieldscope
Notes
A Nikon T-ring corresponding to the specific camera body is required for use.
Autofocus and exposure automation are not supported; operation is fully manual.
Tripod support is strongly recommended due to the extended focal length and weight distribution.
